The whole world of Panel Processing machines
The whole world of Panel Processing machines

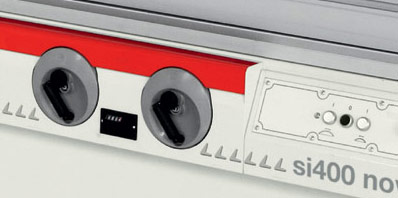

Now you have an option that's equivalent to Euro-quality precision machines, with a 'Pride of India' stamp. Panel Saw of maximum strength & rigidity with value added features, with Jai assurance of quality, services and spares.
The table will never require adjustment due to its structure with arch-ground steel slide ways (SCM exclusive & patented solution) so it can carry loads four times higher than others
It has maximum torsional rigidity and total absence of vibration due to closed loop structure, which ensures perfect alignment of the blades during tilted & difficult cuts.
A dedicated gear box fully protected from dust (SCM patented solution) provides smooth, direct transmission & precise blade adjustment every time
| Model No | Unit |
SI-400 Nova |
| Sliding table length | mm |
3200 |
| Sliding table width | mm |
360 |
| Max.dia. / bore - saw blade | mm |
400 x 30 |
| Max.dia. / bore - scoring blade | mm |
120 x 20 |
| Saw blade speed | rpm |
3000 / 4000 / 5000 |
| Scoring blade speed | rpm |
8500 |
| Tilting of saw unit - manual | degree |
90° - 45° |
| Motor for saw blade / scoring | hp |
7.5 / 1.2 |
| Approx. net weight | kg |
750 |
A very useful accessory. This pneumatic clamp allows more maneuverability in panel handling, sizing and cutting. Also quality cuts on irregular Panels or thin work pieces.
PC(Plus):3 step Pneumatic Clamp: This 3 step clamp allows more flexibility for handling small pieces.
