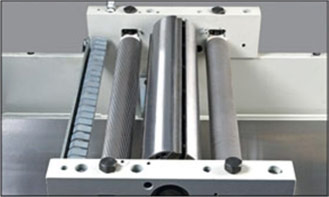

Helicoidal infeed roller & steel outfeed roller.
Helicoidal infeed roller and steel outfeed roller.

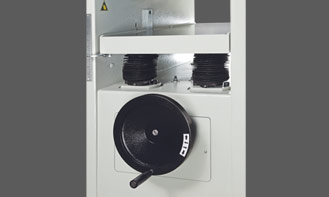

Thicknessing table lifting by 4 dust protected columns.
| Model | J-4218 |
J-4224 |
mm / inch |
mm / inch |
|
| Max planing width | 455 / 18" |
610 / 24" |
| Thicknessing capacity | 200 / 8" |
200 / 8" |
| Length Of Thickness Table | 775 / 30½" |
775 / 30½" |
| Min. Length of workpiece for thicknessing | 254 / 10" |
254 / 10" |
| Feeding Speed (feet per minute) | 24 |
24 |
| Cutter block diameter | 95 / 3¾" |
95 / 3¾" |
| Cutter block speed- RPM | 4000 |
4000 |
| Standard cutter block - code no. | 3B-W |
3B-W |
| Size of Dust Collection Port-Dia. | 100 / 4" |
100 / 4" |
| Power required - HP / RPM | 5 / 1440 |
7.5 / 1440 |
| Approx.wt.of machine - kg. | 500 |
600 |
Electric motor 1no.5 hp - 1440rpm / 3 Phase (for Model no J-4218), Electric motor 1no.7.5 hp - 1440rpm / 3 Phase (for Model no J-4224), 3 planer blades fitted in cutter block, control panel, toolkit & m/c manual.
Note: Use Dust collector with the m/c for superior performance.
